Transfer Isolators

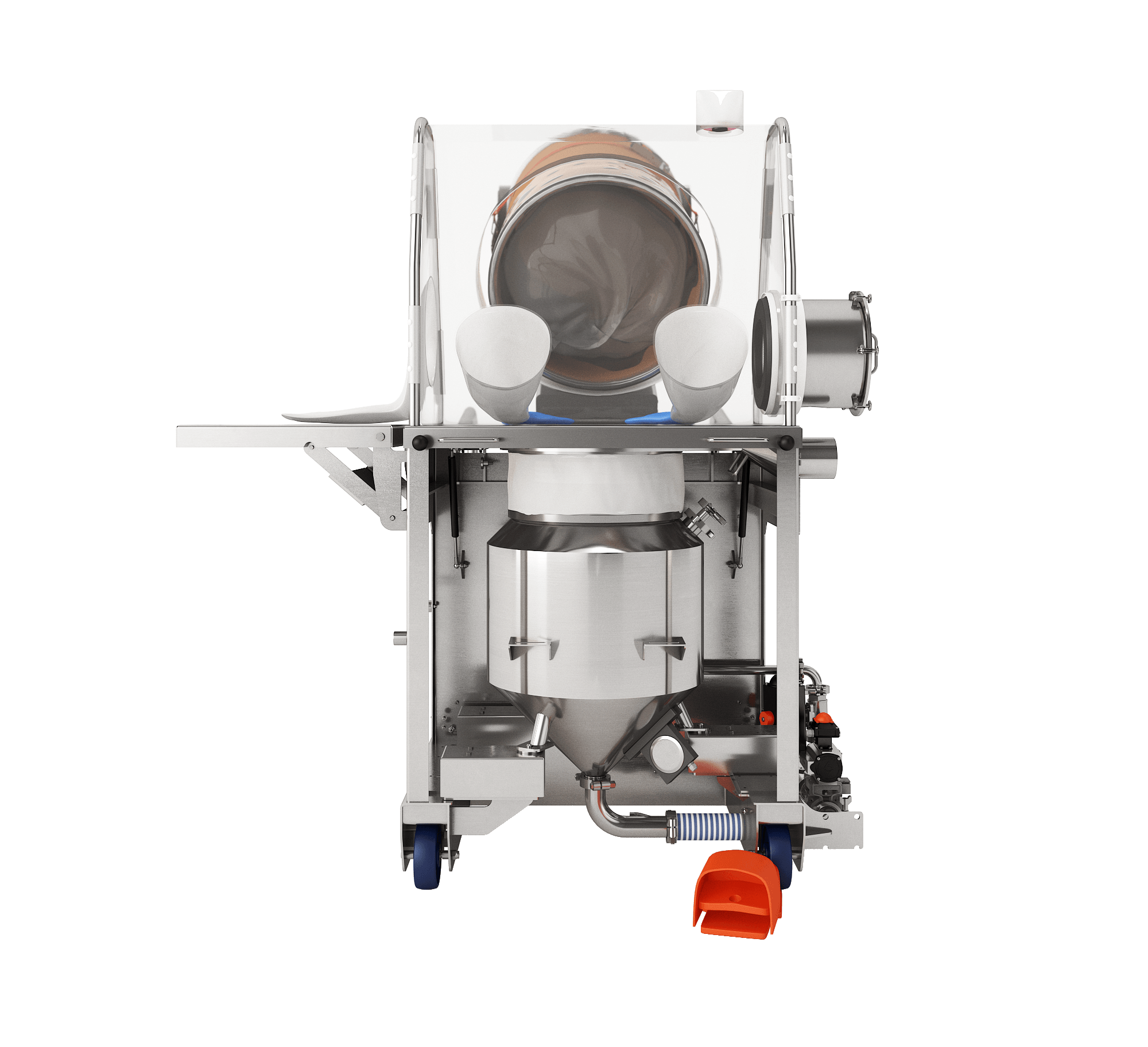

The Rheo Transfer Isolator is designed to allow operators to safely remove product from containers and transfer them into the next step of the process. This system is often integrated on to the Rheo Material Transfer Station.

The drum chute or side port allows the operator to bring in a raw material container with good ergonomics while maintaining high levels of containment.

This isolator series can be equipped with many options, see the configurator below.

Choose a configuration below.
Select A Glove Option
2 Gloves
3 Gloves
Select Additional Features
Side
Port
Transfer Chute
Drum Chute
Zipper

Request
Drawing

Request
Brochure


Negative Pressure Option

Transfer Isolators can be equipped to connect to our portable Air Filtration Unit to supply a negative pressure isolator. This configuration will achieve better containment performance and is equipped with a pressure indicator so the operator knows the isolator conditions at all times.



Vacuum Conveyance System

Vacuum conveyance applications are a common request and introduce pressure management challenges for a flexible isolator. Our vacuum conveyance system isolator configuration is designed to manage these drastic pressure changes to maintain the required isolator conditions.



Accessories

Many accessories can be provided with our Transfer Isolators to create a complete high containment system, some of these accessories include:

  • Containment Belts
  • Gloves
  • Clamps
  • Chutes
  • O-Rings


Film Collage

RheoFlex Film

Rheo isolators are constructed from Thermoplastic Polyurethane (with a non-migratory anti-stat) that has been tested and is fully compliant with all regulatory requirements. These films are available in both matte and clear finish and come with a full documentation package tied to the labeled part number.



Testing Center

Rheo is able to do full mock-ups as well as containment performance verification in our Rheo Testing Center. Partner with our engineering team and we can produce a prototype system for your application and verify performance to build confidence in the implementation phase.
